Excellent Sound With DSP Profile
Moondrop has optimized the sound of the latest JIU using the DSP profile. It’s a new generation of an entry-level IEM with a high-performance DD driver that has been optimized using a built-in DSP sound profile. Moondrop has taken the outstanding performance of the Chu and further optimized it with DSP(Digital Signal Processing) Technology for enhanced sound performance. The built-in DSP creates a balanced listening experience, a natural soundstage, and a pleasing lower-end performance.
10mm High-Performance Dynamic Driver Unit
Moondrop JIU adopts a 10mm high-performance dynamic driver unit that delivers enhanced sound performance. It utilizes PVD(physical vapor deposition) technology. In this technology, Titanium metal is deposited on polymer film to form nanometer-sized crystals on its surface layer and then integrally molded. The Diaphragm has improved rigidity and ensures excellent damping resulting in improved treble extension and details.

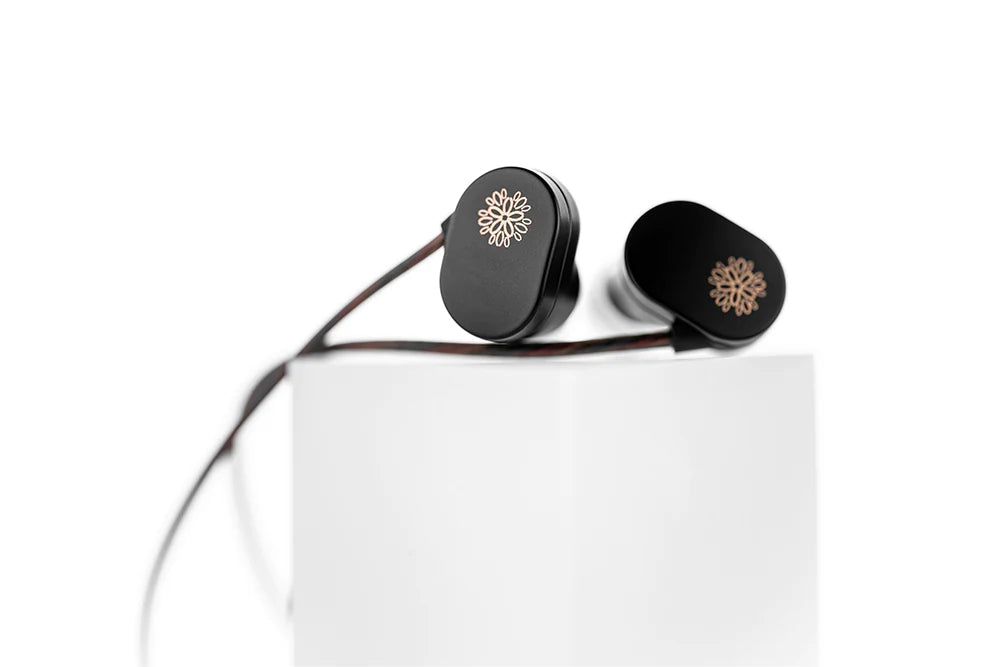

Precisely Designed Acoustic Cavity Structure With Zinc Alloy Ear Shells
In order to match the desired frequency response range, Moondrop has professionally designed the acoustic cavity structure using FEA(Finite Element Analysis) simulation and 3D printing technology. The pair features high-quality Zinc Alloy material. The shells are not only lightweight but also have a solid, robust build structure.
Tuned Following the VDSF Target Response
The tuning for the Moondrop JIU is adjusted following Moondrop’s VDSF target response. It is a parametric target and sound quality is controlled by composite elements, thus restoring the sound quality to mastering levels. Moondrop JIU ensures quality sound with an open soundstage experience.

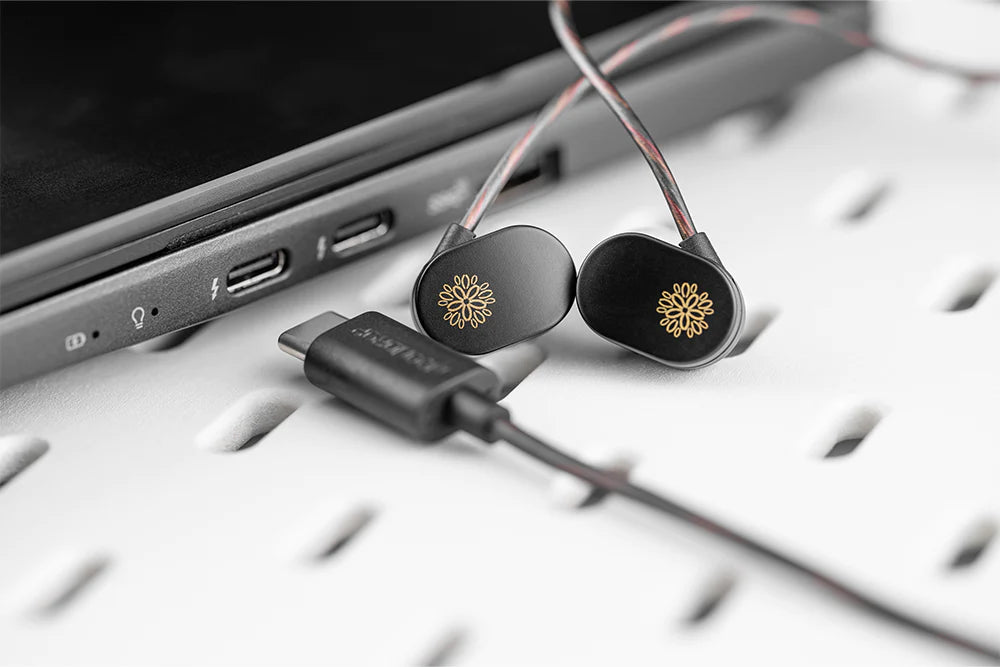

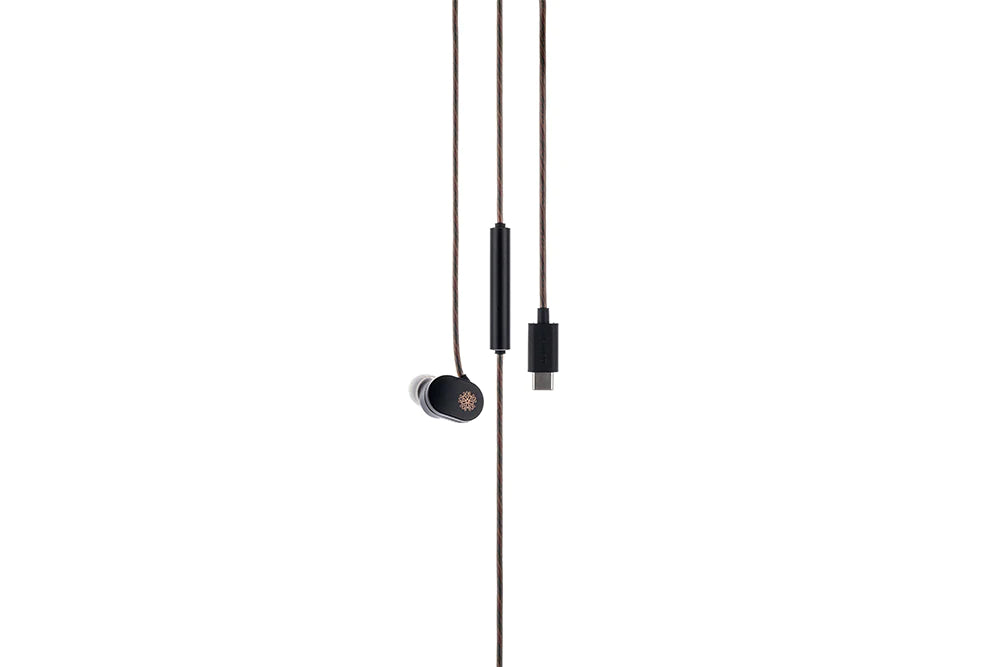

Convenient To Use USB Type-C Termination
Moondrop JIU features a versatile USB Type-C connection port. It can easily be used with smartphones, laptops, and computers easily. JIU also features a built-in microphone.
| Housing | Zinc Alloy |
| Driver | 10mm High-performance Dynamic Driver |
| Diaphragm | Titanium-plated Diaphragm |
| Coil | 0.035mm Ultra-thin-Black CCAW |
| Magnetic Circuit | N52 Magnetic High-performance Internal Magnetic Circuit |
| Acoustic Filter | Patented Anti-blocking (Anti-imbalanced) Filter |
| Sensitivity | 110dB/Vrms(@1kHz) |
| THD | THD@1kHz≤1% |
| Frequency Response | 10Hz -35kHz (IEC61094, Free-field) |
| Effective Frequency Response | 20Hz-20kHz (IEC60318-4, -3dB) |
